TRENDnet TI-PG80 8-Port Hardened Industrial Gigabit POE+ DIN-Rail Switch

TRENDnet TI-PG80 8-Port Industrial Gigabit POE+ Switch

Name: TRENDnet TI-PG80 8-Port Industrial Gigabit POE+ Switch
Brand: TRENDnet
SKU: BH1349738
Availability: InStock

$199.19

Hardened IP30-rated metal enclosure, 8 Gigabit Ethernet ports, 200W PoE+ budget, -40 to 167°F temperature tolerance.

In stock

SKU: BH1349738 Category: Wired Networking Brand: TRENDnet

Description

TRENDnet TI-PG80: Reliable Industrial Gigabit POE+ Switch

Designed for harsh industrial environments, the TRENDnet TI-PG80 8-Port Hardened Industrial Gigabit POE+ DIN-Rail Switch offers robust performance and reliability. Its hardened IP30-rated metal enclosure is built to withstand extreme temperatures ranging from -40 to 167°F, ensuring uninterrupted operation in challenging conditions.

Key Features:

8 Gigabit Ethernet ports for high-speed connectivity
200-watt PoE+ power budget for powering devices
16 Gbps switching capacity for seamless data transfer
Dual redundant power inputs for backup power
Built-in alarm for primary power source failure alerts

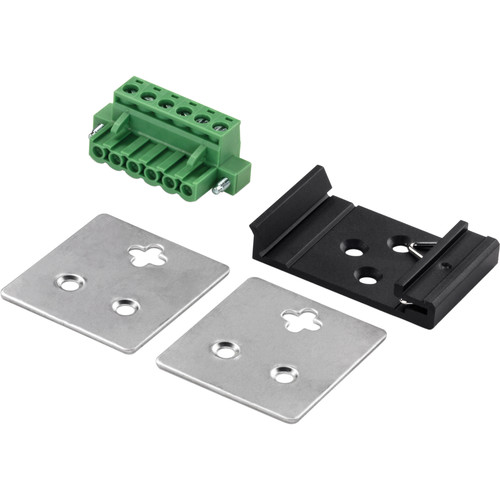

Rail- and wall-mount hardware for flexible installation
6-pin removable terminal block for easy wiring
LED indicators for monitoring network activity
Grounding point for enhanced safety

The TRENDnet TI-PG80 DIN-Rail Switch is designed to provide a reliable and efficient networking solution for industrial applications. With its advanced features and rugged design, it ensures that your network remains stable and secure, even in the most demanding environments. The switch’s high PoE+ budget and switching capacity guarantee that your devices receive the power and bandwidth they need to operate effectively.

Ideal for industrial automation, surveillance, and other applications requiring robust networking, the TI-PG80 offers a future-proof solution that can adapt to your growing network needs. Its easy installation and management make it a convenient choice for businesses looking to enhance their industrial network infrastructure.

Additional information

Weight	1.79 lbs
Dimensions	8.7 × 6.8 × 2.7 in
Standards	IEEE 802.3<br> IEEE 802.3u<br> IEEE 802.3ab<br> IEEE 802.3x<br> IEEE 802.3af PoE<br> IEEE 802.3at PoE+
Device Interface	8 x Gigabit PoE+ ports<br> 6-pin removable terminal block<br> LED indicators<br> DIN-Rail mount<br> Wall mount<br> Grounding point
Data Transfer Rate	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)<br> Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)<br> Gigabit: 2000 Mbps (full duplex)
Performance	Data RAM Buffer: 1024 KB<br> Switching Fabric: 16 Gbps<br> MAC Address Table: 8 K entries<br> Jumbo Frame: 9 KB<br> Forwarding Rate: 11.9 Mpps (64-byte packet size)
Power	Input: 48 – 56 V DC<br> Compatible Power Supply: TI-S24048 (sold separately)<br> Consumption: Max. 5.76 Watts (without PD)
PoE	PoE Budget: 200 Watts<br> Pin 1, 2 for power+ and pin 3, 6 for power- (mode A)
Terminal Block	Redundant power inputs, alarm relay contact, 6 pin<br> Wire range: 0.34 mm2 to 2.5 mm2<br> Solid wire (AWG): 12-24/14-22<br> Stranded wire (AWG): 12-24/14-22<br> Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm<br> Wire strip length: 7-8 mm
Relay Mode	Alarm Relay Contact<br> Relay outputs with current carrying capacity of 1 A, 24 V DC<br> Open circuit mode when two power sources are connected<br> Short circuit mode when only one power source is connected
Power Consumption	Max. 5.76 Watts (without PoE)
MTBF	510, 304 hours
Housing	IP30 metal case<br> DIN-rail mount<br> Wall mount<br> Grounding point<br> 8 KV ESD protection<br> 6 KV surge protection
Temperature & Humidity	Operating Temperature<br> -40 to 167° F / -40 to 75°C<br> Operating Humidity<br> Max. 95% non-condensing
Certifications	CE<br> FCC<br> Shock (IEC 60068-2-27)<br> Freefall (IEC 60068-2-32)<br> Vibration (IEC 60068-2-6)
