Description

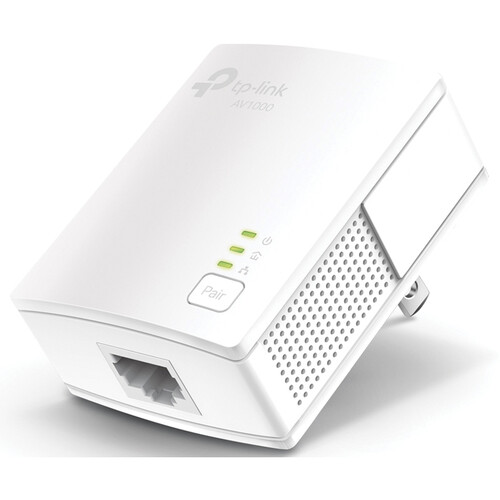

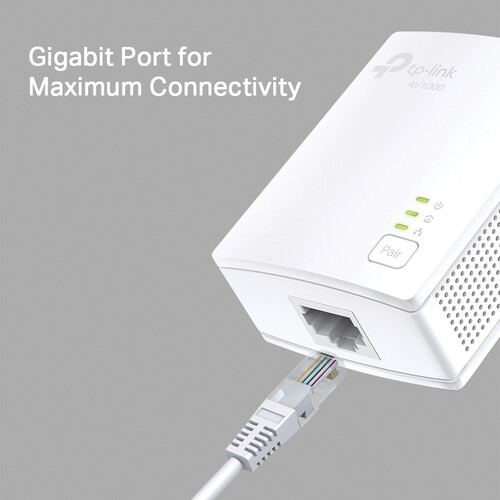

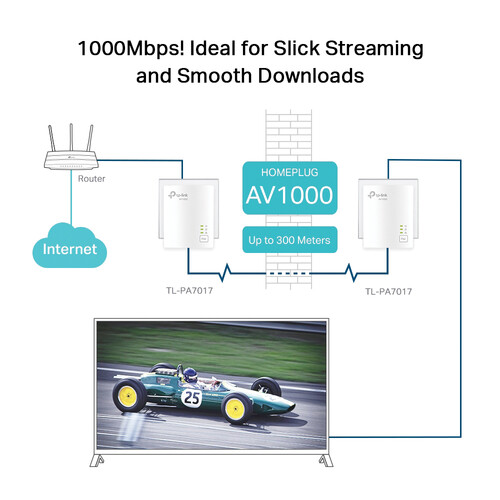

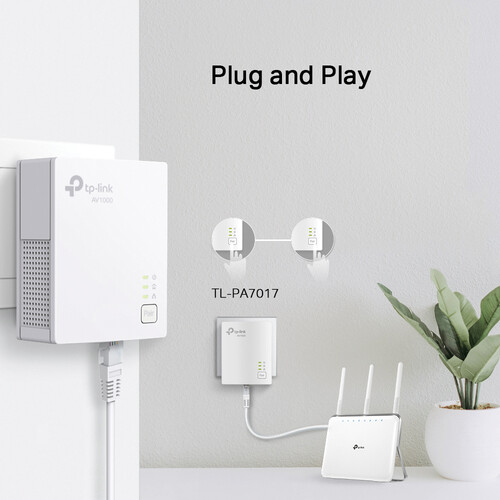

Quickly expand your wired Gigabit network to reach across your home by including the AV1000 Powerline Ethernet Adapter Add-On Unit from TP-Link in your existing powerline Ethernet configuration. This HomePlug AV2 compliant module plugs into available two-pronged US wall outlets to integrate into an existing AV1000 Powerline Ethernet system using TL-PA7017 adapters. With it, you can reliably transfer data across up to 984.3′ using your home’s electrical wiring. Connect it to compatible devices through its Gigabit Ethernet port, then press the pairing buttons on each of the adapters to link them. Your data connection is secured with 128-bit AES encryption. The AV1000 Powerline Adapter supports the IEEE 1901, 802.3/3u/3ab standards and is designed to work with Windows, Mac, and Linux computers.
Additional information
| Weight | 0.57 lbs |
|---|---|
| Dimensions | 7.5 × 5.3 × 3.1 in |
| Maximum Data Rate | 1 Gb/s |
| Active Power Consumption | 2.3 W |
| Storage Humidity | 5 to 90% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Operating Humidity | 10 to 90% |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating System Support | Linux, Windows, macOS/OS X |
| Standby Power Consumption | 0.5 W |
| Power-Saving Mode | Yes |
| Encryption | 128-Bit AES |
| Number of Ethernet Ports | 1 |
| Wi-Fi Standards | None |
| AC Pass-Through | No |
| Plug Type | US (2-Pin) |
| Maximum Networking Distance | 984.3' / 300 m |
| Modulation Technology | OFDM |
| Powerline Technology | HomePlug AV, HomePlug AV2 |
| Ethernet Speed | 10/100/1000 Mb/s |
| Ethernet Standards | IEEE 1901, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Dimensions (W x H x D) | 2 x 2.6 x 1.1" / 52 x 65 x 28.5 mm |
