Description

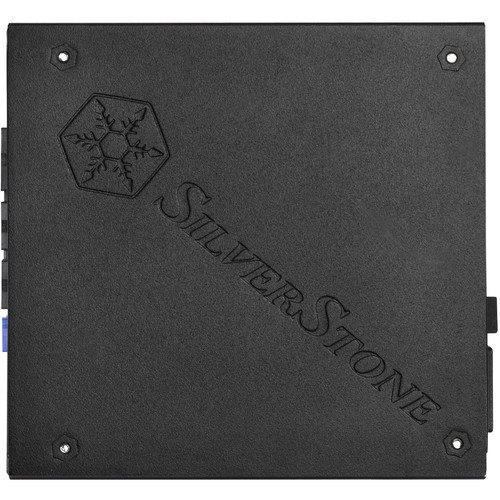

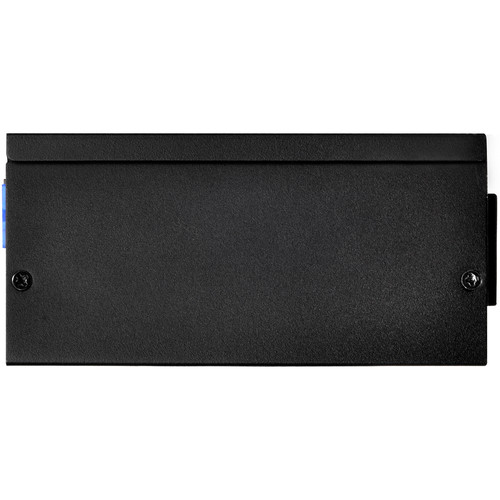

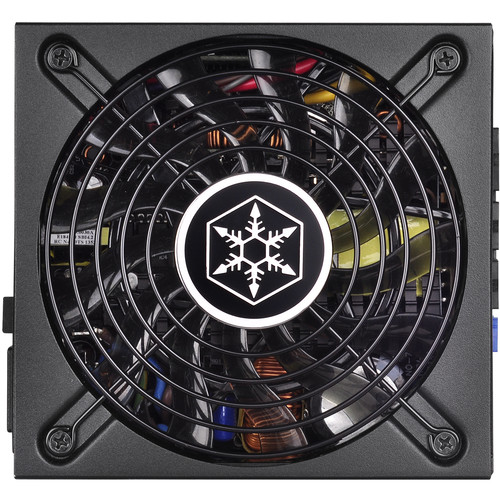

The 500W 80 Plus Gold Modular SFX-L Power Supply from SilverStone features an 87~90% efficiency at 20~100% loading. It is able to provide 24/7 continuous power output with an operating temperature of 104°F / 40°C. Its power density per liter is 484W, and its 120mm fan helps to provide cooling with its intelligent semi-fanless operation. It uses flat, modular cables. Other features include a single +12V rail with 40A, support for SFX-L and ATX form factors, active PFC, and support for dual PCIe 8/6pin connectors.

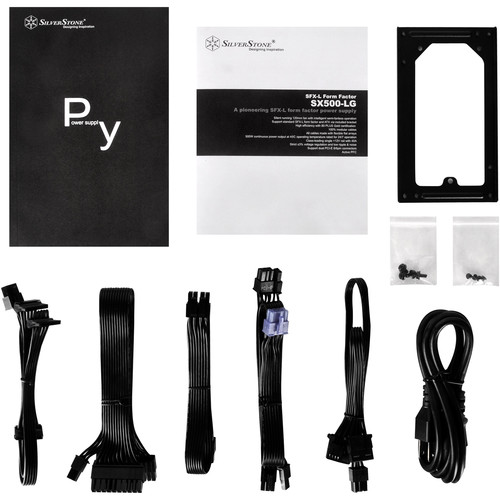

This power supply has a noise level of 0-36 dBA. It supports select NVIDIA and AMD GPUs as well as ATX12V v2.4. This power supply is able to fit into systems with a depth of up to 130mm. Included is an SFX to ATX mounting bracket.
Additional information
| Weight | 4.16 lbs |
|---|---|
| Dimensions | 8.7 × 8.25 × 3.2 in |

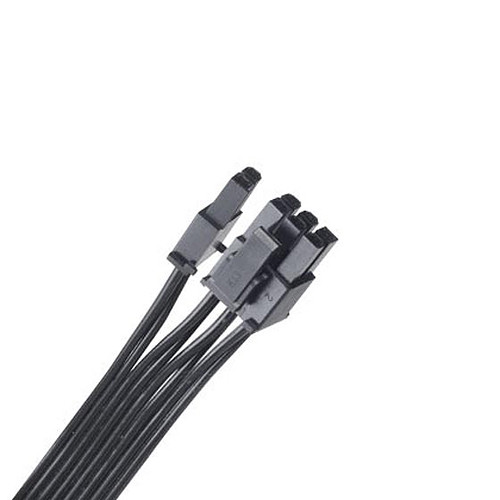

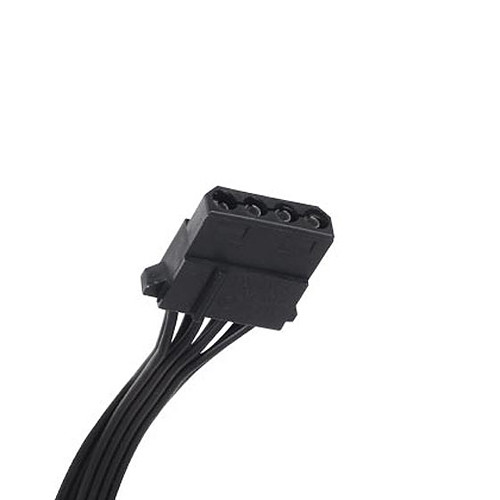

| Total Connectors | 1 x 20+4-Pin ATX Motherboard<br />1 x 4+4-Pin EPS CPU<br />2 x 6+2-Pin PCIe<br />3 x 15-Pin SATA<br />2 x 4-Pin Peripheral / Molex<br />1 x 4-Pin Floppy |

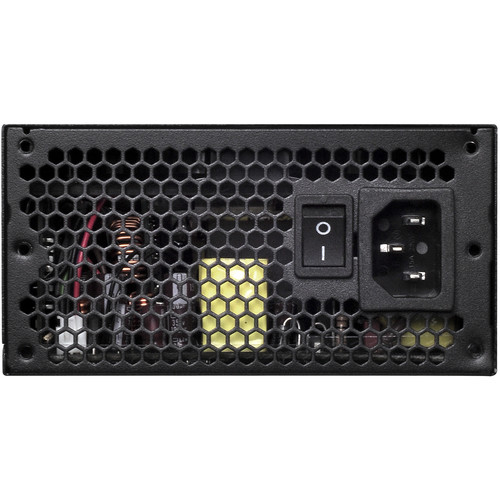

| AC Input Power | 90 to 264 VAC, 50 / 60 Hz |
| Protection | Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection |
| Compliance | ATX 12 V v2.4 |
| Form Factor | SFX-L |
| Operating Temperature | 50 to 122°F / 10 to 50°C |
| Noise Level | 0 to 36 dBA |
| Fan Size | 120 mm |
| Efficiency | 87 to 90% at 20 to 100% Load |
| Active Power Factor Correction | 95% |
| Efficiency Rating | 80 PLUS Gold |
| Ripple and Noise | +3.3 V: 50 mV, +5 V: 50 mV, +12 V: 120 mV, -12 V: 120 mV, +5 Vsb: 50 mV |
| Voltage Regulation | +3.3 V: ± 3%, +5 V: ± 3%, +12 V: ± 3%, -12 V: ± 10%, +5 Vsb: ± 5% |
| Max Load for +5 Vsb | 3 A |

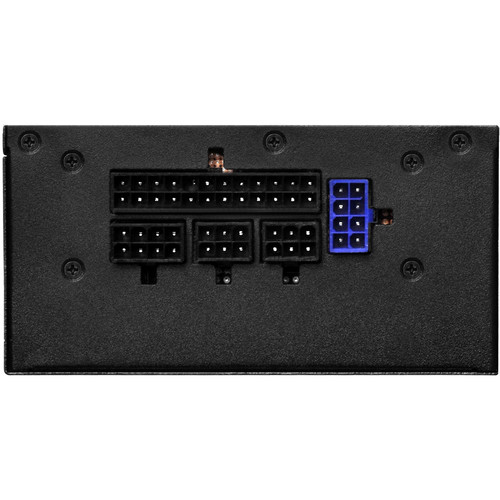

| Cable Design | Modular |
| Max Load for +5 V | 20 A |
| Max Load for +3.3 V | 20 A |
| Combined Power for +3.3/+5 V | 105 W |
| Max Load for -12 V | 0.3 A |
| Combined Power for +12 V | 480 W |
| Total Wattage | 500 W |
| EPS Connector Distances | 15.7" / 400 mm |

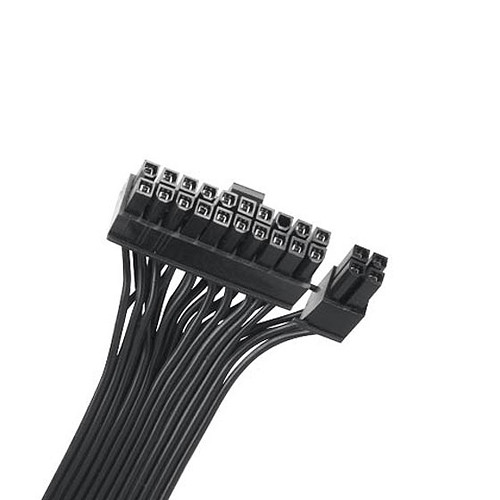

| ATX Connector Distance | 11.8" / 300 mm |

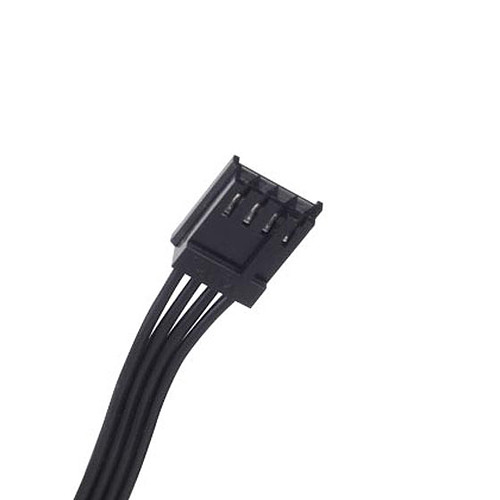

| Floppy Connector Distances | 11.8" / 300 mm<br />19.7" / 500 mm<br />27.6" / 700 mm |
| Peripheral Connector Distances | 11.8" / 300 mm<br />19.7" / 500 mm<br />27.6" / 700 mm |

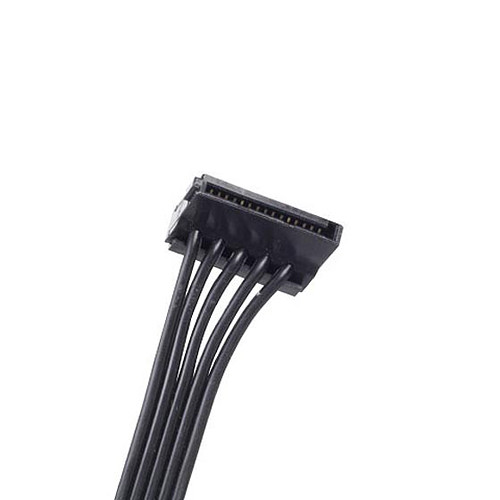

| SATA Connector Distances | 11.8" / 300 mm<br />19.7" / 500 mm<br />23.6" / 600 mm |

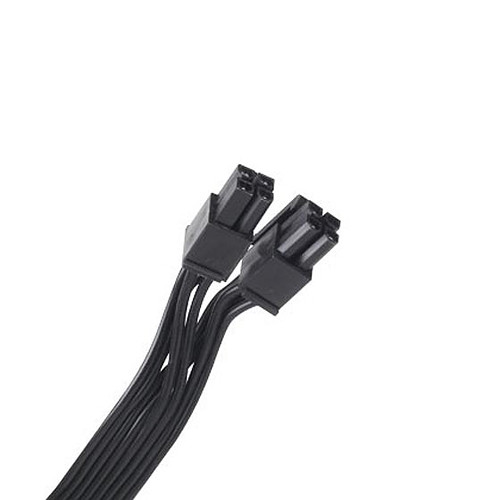

| PCIe Connector Distances | 15.7" / 400 mm<br />21.7" / 550 mm |
| Mean Time Between Failures (MTBF) | 100, 000 Hours |
