The MSI X570-A PRO AM4 ATX Motherboard is built on the AMD X570 chipset, supporting second- and third-generation AMD Ryzen processors with an AM4 socket. It has four memory slots for up to 128GB of dual-channel DDR4 RAM, which can be overclocked to up to 4400 MHz. For storage, it’s equipped with six SATA III ports and two M.2 slots. There are two PCIe 4.0 x16 slots for graphics cards, one of which only runs at x4, and three PCIe 3.0 x1 slots for other PCI-based hardware. Other integrated features include Realtek 8111H Gigabit Ethernet and Realtek ALC1220 7.1-channel HD audio.

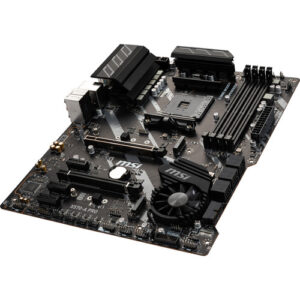

MSI X570-A PRO AM4 ATX Motherboard
$111.99
In stock
Description
Additional information
Weight | 2.78 lbs |
---|---|
Dimensions | 13.8 × 10.7 × 2.7 in |
Chipset | AMD X570 |
RAID Support | RAID 0, 1, 10 (SATA) |
Supported Operating Systems | Windows 10 (64-Bit) |
Audio Codec | Realtek ALC1220 (7.1-Channel) |
I/O Connection Headers | AAFP, USB 3.1 / USB 3.2 Gen 1 |
Legacy | 1 x Serial |
Diagnostics | Clear CMOS |
LED Header | 4 x RGB |
Security | Chassis Intrusion, TPM Module |
Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin CPU<br />1 x 4-Pin CPU |
Liquid Cooling | 1 x 4-Pin Pump |
Air Cooling | 1 x 4-Pin CPU<br />4 x 4-Pin System |
Multi-GPU Support | 2-Way AMD CrossFireX |
Expansion Slots | 1 x PCIe 4.0 x16 (x16 mode)<br />1 x PCIe 4.0 x16 (x4 mode)<br />3 x PCIe 3.0 x1 |
U.2 | None |
CPU Socket | AM4 |
M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4)<br />1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III) |
SATA | 6 x SATA III |
ECC Support | Non-ECC, ECC (Non-ECC Mode) Unbuffered |
Channel Architecture | Dual Channel |
Maximum Capacity | 128 GB |
Memory Support | DDR4 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400 MHz |
Memory Slots | 4 x 288-Pin |
Buttons | BIOS Flashback |
PS/2 | 1 x Combo |
Ethernet / Controller | 1 x Realtek 8111H Gigabit |
Display | 1 x HDMI 1.4 |
Thunderbolt | None |
USB | 2 x USB 2.0 Header (Supports 4 USB Type-A Port)<br />2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port) |
Form Factor | ATX |
