Description

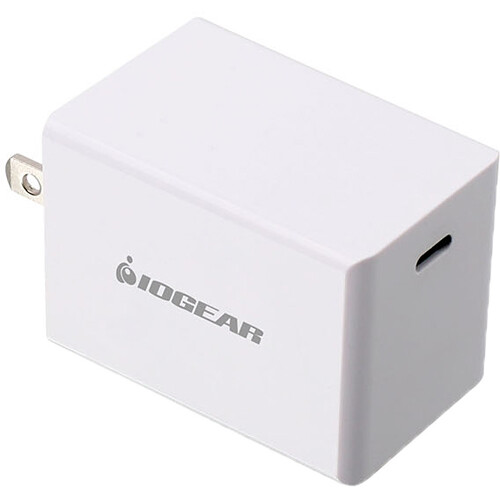

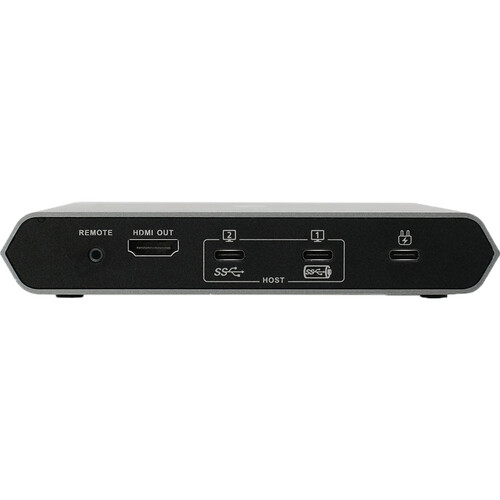

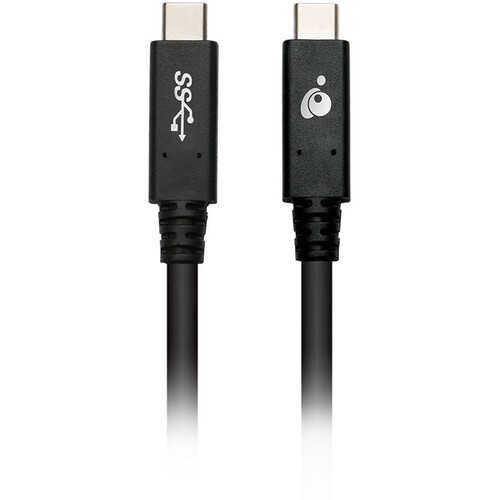

Switch control between two Thunderbolt 3 or USB Type-C devices with DP Alt mode using one keyboard, mouse, and 4K HDMI monitor with the Access Pro 2-Port USB Type-C KVM Switch with Power Adapter Kit from IOGEAR. This kit includes a 2-port USB Type-C KVM switch, a 60W power adapter, and a USB Type-C cable, which connects to the USB Type-C power delivery port. The rear of the KVM switch includes two labeled USB 3.1 Gen 1 Type-C ports, with port 1 providing up to 75W of power for laptops and port 2 providing up to 10W of power for smartphones and other small portable devices. External monitors connect to the HDMI 1.4b port, which supports up to 3840 x 2160 at 30 Hz for laptops and 1920 x 1080 at 60 Hz for smartphones and tablets. There are also two USB 3.1 Gen 1 Type-A ports located on the front that can transfer up to 5 Gb/s from compatible devices such as flash drives. Users can switch between devices using the pushbutton remote, which has an integrated 6′ cable that connects to the KVM’s rear 3.5mm jack.
Additional information
| Weight | 2.29 lbs |
|---|---|
| Dimensions | 10.2 × 7.2 × 4.8 in |
| # of Systems Supported | 2 |
| KVM Connections | 2 x USB Type-C USB 3.1 / USB 3.2 Gen 1 |
| I/O Connections | 1 x HDMI 1.4 b<br />2 x USB Type-A USB 3.1 / USB 3.2 Gen 1<br />1 x USB Type-C (Power) |
| Supported Resolutions | 3840 x 2160 @ 30 Hz<br />1920 x 1080 @ 60 Hz |
| USB Keyboard/Mouse Emulation | Yes |
| Operating System Support | Android, ChromeOS, Windows, iPadOS, macOS/OS X |
| Power Source | AC Adapter |
| DC Input Power | 5 VDC at 3 A |
| Power Consumption | 15 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 80% |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Cable Length | 3.3' / 100.6 cm |
