Description

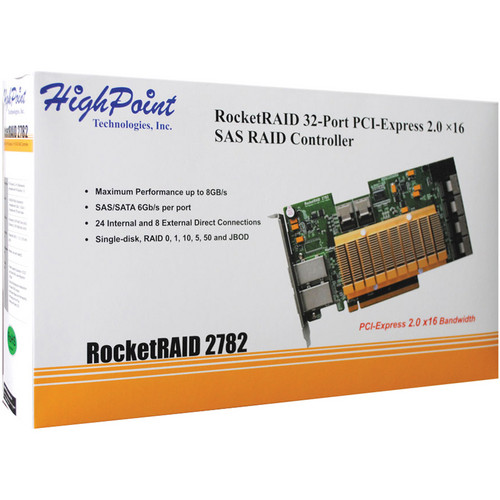

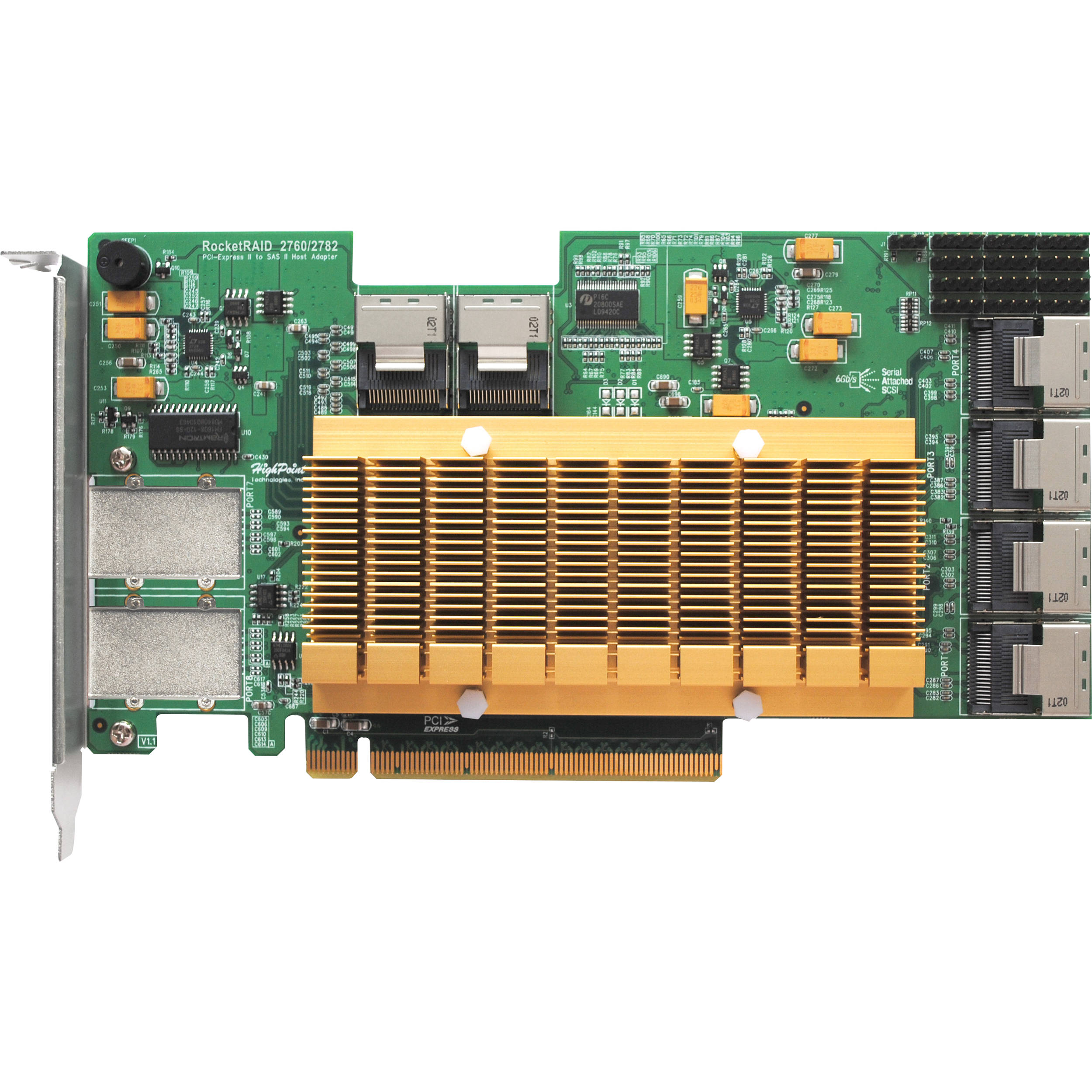

The HighPoint RocketRAID 2782 SAS 6 GB/s PCI-E 2.0 x16 Host Bus Adapter optimizes performance by aggregating multiple SAS controllers, thereby overcoming the performance bottlenecks faced by conventional Host Bus Adapters. The RocketRAID high port count SAS RAID HBA’s 32 dedicated ports deliver a connectivity bandwidth of up to 19200 MB/s.
Additional information
| Weight | 1.35 lbs |
|---|---|
| Dimensions | 13.4 × 7.7 × 2.8 in |
| Host Interface | PCI Express 2.0 x16 |
| External Connections | 2 x Mini SAS (SFF 8088) SAS-2 6 Gb/s |
| Internal Connections | 6 x Mini SAS (SFF 8087) |
| Hot-Swap Support | Yes |
| RAID Modes | RAID 0, 1, 10, 5, 50, JBOD |
| OS Compatibility | Windows Vista<br />Windows 7<br />Linux 1.0<br />FreeBSD 1.4 |
| Form Factor | Full-Height |
| Audible Alarm | Yes |
| Status Monitoring | LED Indicator |
Related products
$239.20
Controller Cards

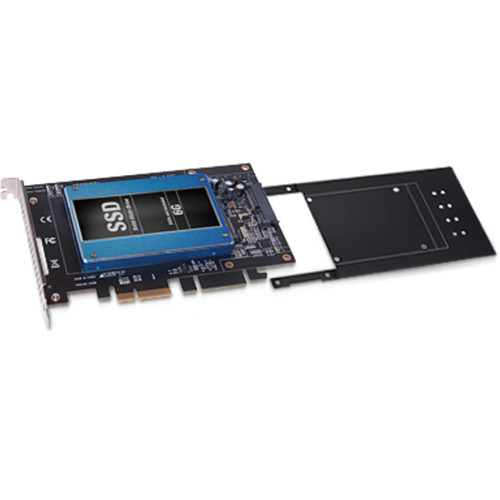

Sonnet Tempo 6 Gb/s SATA PCI Express 2.5″ Solid State Drive Card
