Description

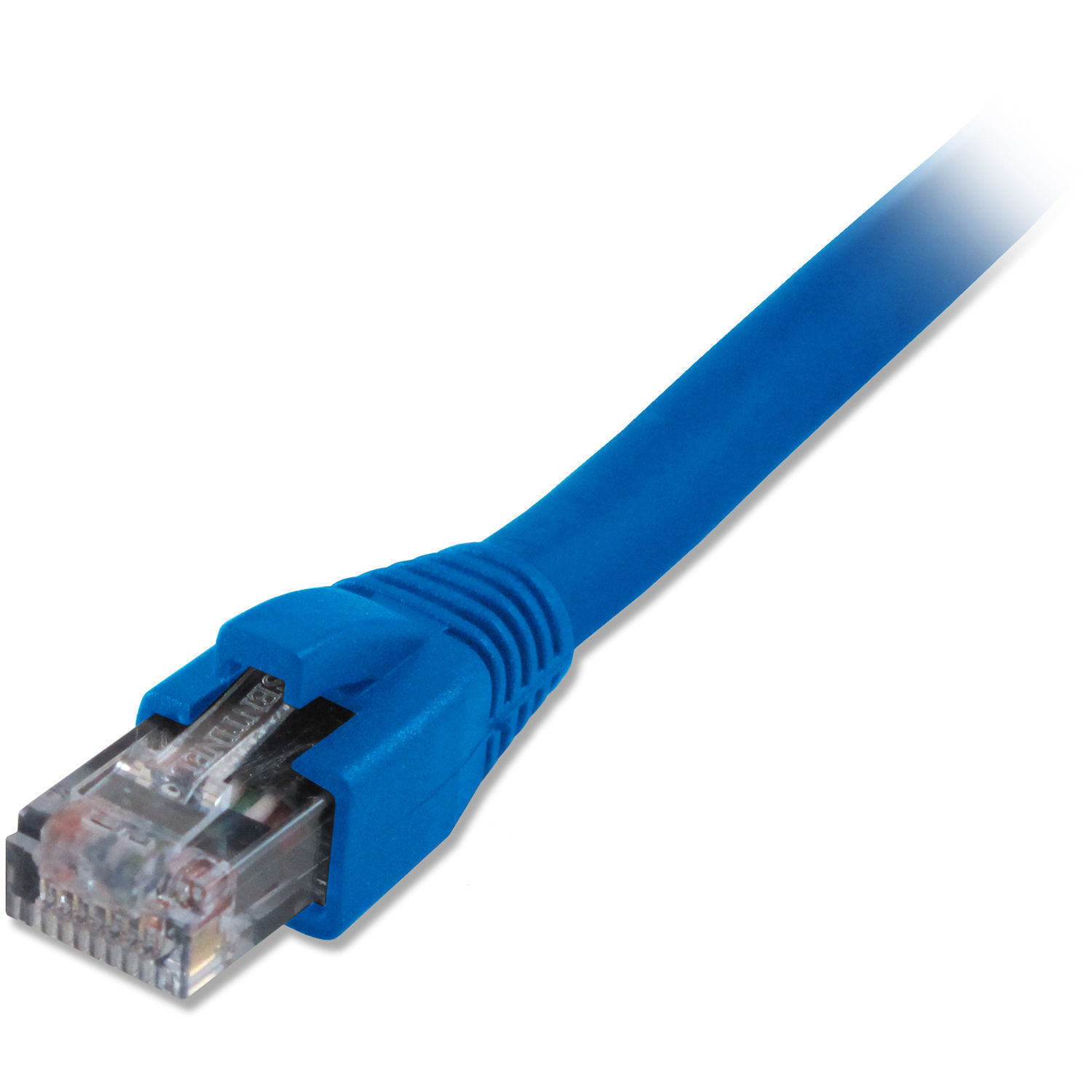

Supporting various Category 6 applications including Ethernet 100BASE-TX, 100BASE-VG, and 155 ATM, the 100′ Cat6 Snagless Solid Plenum Shielded Patch Cable from Comprehensive is ideal for networking environments. This shielded twisted pair plenum cable also supports high-bandwidth applications like 622 ATM, wideband, and Ethernet 1000BASE-T, making it perfect for environments where data, voice, and video are used simultaneously.
Additional information
| Weight | 4.7 lbs |
|---|---|
| Dimensions | 11.3 × 10.4 × 2.5 in |
| Mutual Capacitance | 14 pF/ft nominal |
| Maximum Capacitance Unbalance | 330 pF/ft |
| Velocity of Propagation | 72% |
| Conductor | Maximum Conductor D.C.R.: 28.6 ohm/1, 000 feet |
| Maximum DCR Unbalanced | 5% |
| Delay Skew | 45.0 ns/100 m (maximum) |
| Characteristic Impedance | From 0.772 – 100 MHz 100 -15%, from 101 – 250 MHz 100 -22% |
| Temperature Rating | Installation: 32 to 122°F / -0 to 50°C<br> Operation: 28.4 to 140°F / -2 to 60°C |
| Jacket Color | Blue |
| Cable Standard | ANSI/TIA/EIA 568C.2 Category 6<br> National Electric Code – Article 800 |
| Codes | NFPA 262 Plenum Flame Test, FT6<br> ETL Electrically Verified to ANSI/TIA/EIA 568C.2 Category 6<br> C (ETL )US CMP, FT6 |
| RoHS Compliant | Yes |
