Description

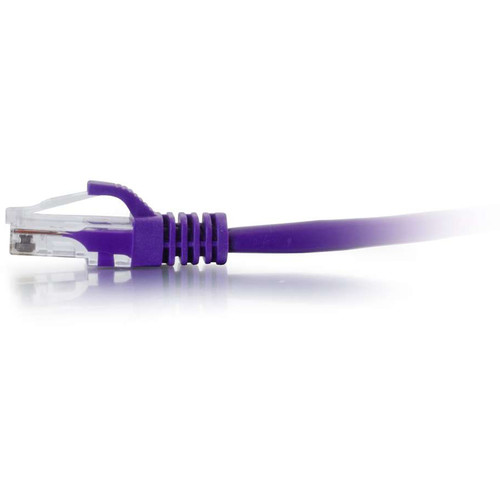

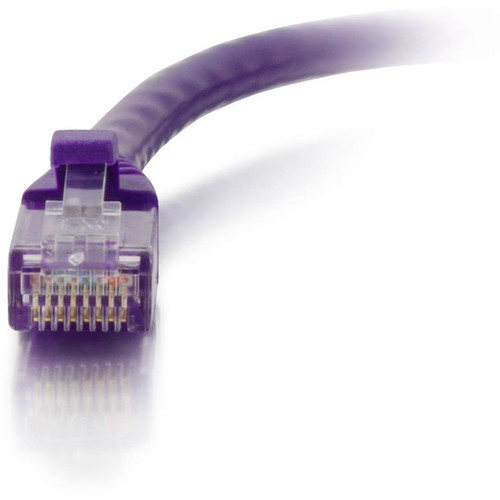

For fast Ethernet and Gigabit computer networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief.
Additional information
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 4.5 × 4.5 × 0.5 in |
| Network Cable Type | Patch cable – CAT 6 |
| Features | Snagless, stranded, minimized Near-End Crosstalk (NEXT), reduced structural return loss (SRL) |
| Service & Support | Limited lifetime warranty |
| Compliant Standards | RoHS, TIA/EIA-568-B.2-1 |
| Connector (Second End) | RJ-45 – male |
| CONNECTOR | RJ-45 – male |
| Color | Purple |
| Length | 6 ft |
| Plated Connector | Gold |
| Technology | UTP |
| Impedance | 100 Ohm |
| Pairs per Cable | 4 pairs |
| Wires per Cable | 8 wires |
| American Wire Gauge (AWG) | 24 |
| Jacket Material | PVC |
| Wiring Scheme | T568B |
| Max Operating Temperature | 140 °F |
