Description

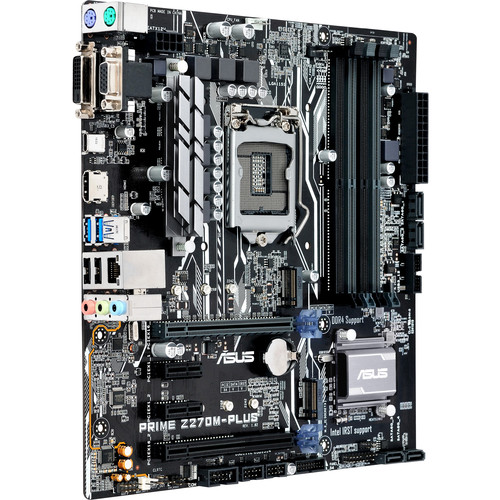

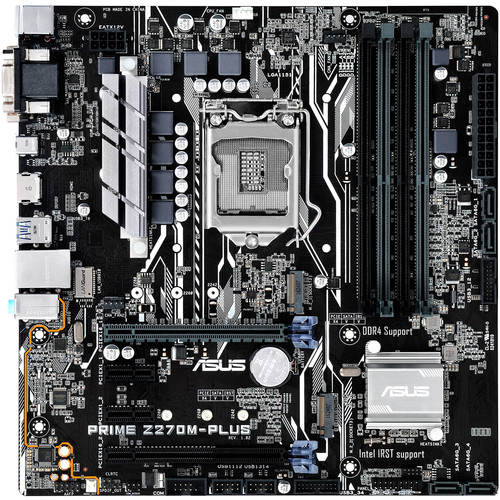

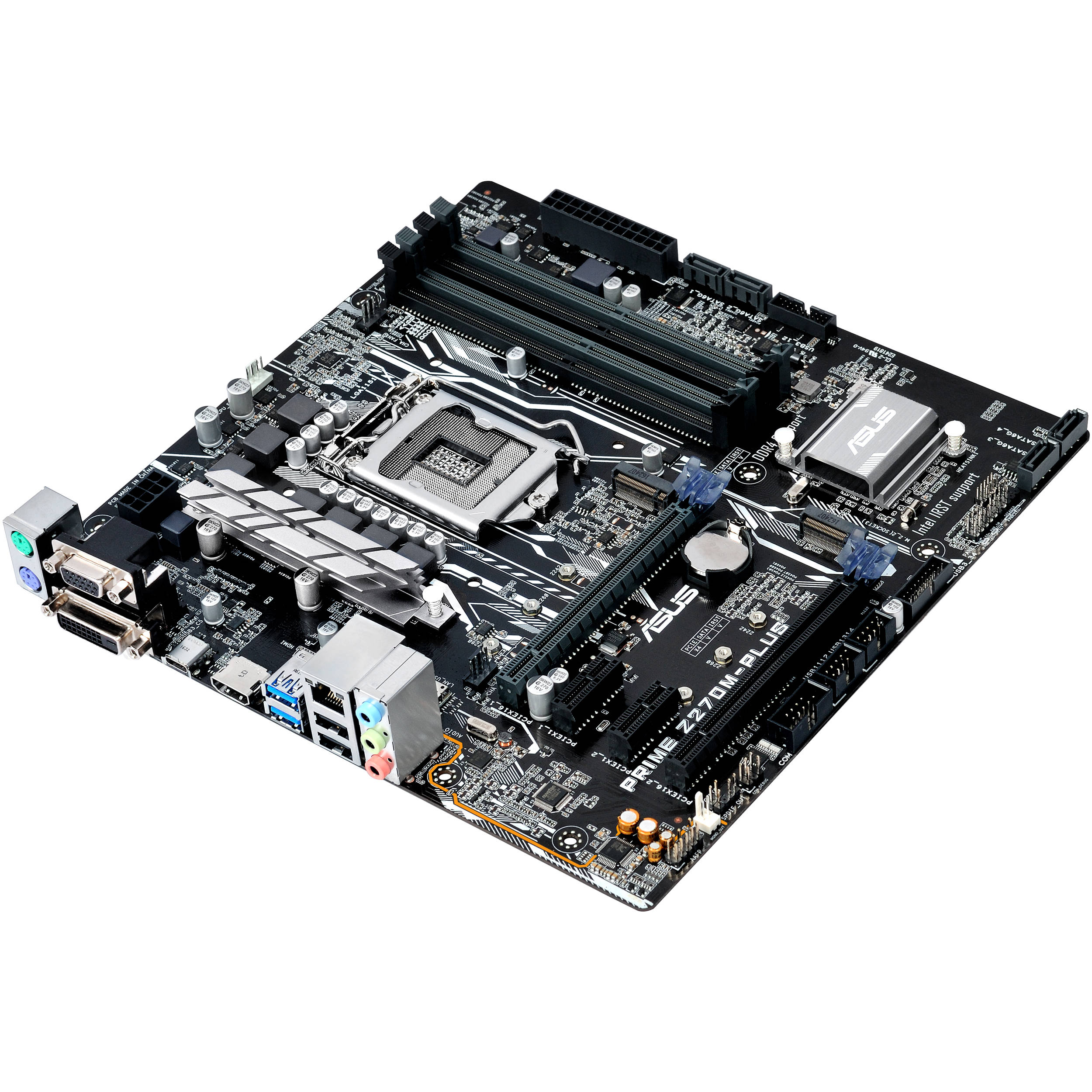

Unlock Customizable Performance with ASUS Prime Z270M-Plus
Ready for 7th Generation Intel Core Kaby Lake processors, the ASUS Prime Z270M-Plus LGA 1151 Micro-ATX Motherboard delivers customizable performance and advanced features for an enhanced computing experience. With 5X Protection III and FanXpert 4 Core, this motherboard provides hardware-level safeguards for reliable operation.
Key Features:
- Supports 6th and 7th Generation Intel Core i7, i5, i3, Pentium, and Celeron processors
- LGA 1151 socket and Z270 chipset for optimal performance
- Micro-ATX form factor with 4 x DDR4 DIMM slots, supporting up to 64GB of RAM at 3866 (OC) MHz
- Dual M.2 slots and USB 3.1 Gen 1 Type-A and Type-C ports for fast data transfer
- CrossFireX technology supports multi-GPU configurations for enhanced graphics performance
- Integrated Intel HD Graphics with HDMI, DVI, and VGA outputs
- 8-Channel ALC 887 HD audio codec for high-fidelity audio
- ASUS AI Suite 3 and UEFI BIOS for easy system management and updates
This motherboard is designed to fit in ATX-sized cases and is compatible with Windows 10 (64-bit). The ASUS Prime Z270M-Plus is equipped with a range of features, including AI Charger, ASUS C.P.R., ASUS CrashFree BIOS 3, and more, ensuring a robust and reliable computing experience. Backed by a limited 3-year warranty, this motherboard is a solid choice for building a high-performance system.
Additional information
| Weight | 2.15 lbs |
|---|---|
| Dimensions | 10.6 × 10.3 × 2.3 in |
| Chipset | Intel Z270 |
| U.2 | None |
| Supported Operating Systems | Windows 10 (64-Bit)<br />Windows 8/8.1 (64-Bit)<br />Windows 7 (32-Bit)<br />Windows 7 (64-Bit) |
| Audio Codec | Realtek ALC887 (8-Channel) |
| I/O Connection Headers | AAFP |
| ROM | 128 Mb |
| Diagnostics | Clear CMOS |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin ATX |
| Air Cooling | 1 x 4-Pin CPU<br />2 x 4-Pin System |
| Multi-GPU Support | AMD CrossFireX |
| Expansion Slots | 1 x PCIe 3.0 x16 (x16 mode)<br />1 x PCIe 3.0 x16 (x4 mode)<br />2 x PCIe 3.0 x1 |
| RAID Support | RAID 0, 1, 5, 10 |
| M.2 | 2 x M Key 2242, 2260, 2280 (PCIe (Unspecified), SATA (Unspecified)) |
| CPU Socket | LGA 1151 |
| SATA | 4 x SATA III |
| ECC Support | Non-ECC Unbuffered |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 64 GB |
| Memory Support | DDR4 2133, 2400, 2600, 2666, 2800, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866 MHz |
| Memory Slots | 4 x 288-Pin |
| PS/2 | 2 x PS/2 |
| Ethernet / Controller | 1 x Intel I219V Gigabit |

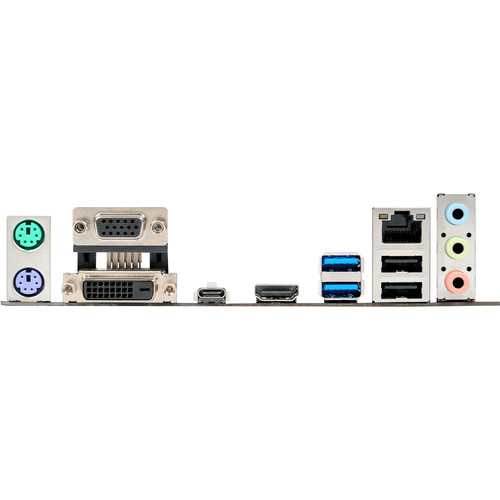

| Display | 1 x HDMI <br />1 x DVI-D <br />1 x VGA |
| Thunderbolt | None |
| USB | 2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)<br />2 x USB 2.0 Header (Supports 4 USB Type-A Port) |
| Form Factor | Micro-ATX |
